23/06/2020Universal asphalt and concrete saw – Mesin Potong Sampel Beton
Universal asphalt and concrete saw, MULTISAW – Mesin Potong sampel Beton dan Aspal Berpresisi Tinggi
Brand/Supplied From : Controls – Italia
Kode Barang : 77 – PV47005
Fitur Utama :
- Standards in terms of precision, planarity and perpendicularity of the specimens.
- High rigidity and stability
- Slab and prism of any shape and dimensions can be without additional accessories (see table for maximum dimensions)
- Jig for round cores, from 100 to 150 mm and for 200 mm dia, length up to 300 mm
- Unique clamping mechanism for cylindrical specimens minimizes specimen damage. Use of a sacrificial PVC tube produces a superior finish and minimizes the edge of the chipping of asphalt samples
- Easy spacer system allows precise preparation of beams or cores
- Saw blade to home position
- Motor mounted on twin chrome-plated steel rails with sealed bearings
- Also suitable for concrete and rock samples
General Descriptions :
Standard cutting machines in the market are standard saws for field use in the building industry. They do not assure the rigidity and stability to obtain precisely specimens for laboratory use. For this reason, we have designed and produced the specific requirements of the relevant Standards and consequently of the Research and Central laboratories.
Multisaw is a universal sawing system for fast, accurate cutting of beams from prisms and for trimming cylinders. An easy-to-use spacer system sets the specimen position and allows beams or cores to be cut without the need for measurement. The saw blade advances and retracts to the home position by a user-friendly hand wheel.

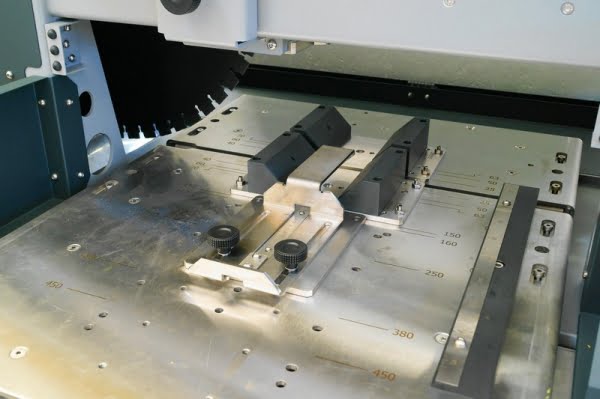

The Multisaw includes the multislab jig, complete with table and manual clamping device for slabs. Cores at the desired length. It can be fitted with 650 mm dia. blade with a maximum cutting depth of 200 mm and prism length of 500 mm (extendable to 700 mm, on request).
The Multisaw allows an easy-to-use sawing system for the Four-Point Bending Beam tests, Two Point Bending Beam tests, TSRST, Texas Overlay Test, Prall Test, Semi-Circular Bend Test, Wheel Tracking Tests with large and small devices, or any concrete beam or cylinder. The system allows cylindrical cores with diameters from 100 to 150 mm, and 200 mm dia. to be quickly and accurately cut to different lengths from 10 to 300 mm.
The Multisawcan be used as part of your Superpave performance based testing program.
Spesifications :
Blade diameter | 650 mm |
Max cutting depth | 200 mm |
cores * | 100 or 150 mm |
Prism length * | Max 500 mm |
Accuracy | Length, perpendicularity and flatness +/- 1% max. according to Standards |
Blade speed | 1400-1680 rpm (50/60 Hz) |
Cooling | Water recirculation pump and tank (included) |
Power supply | 5 kW |
Voltage | 400 V, 50 Hz, 3 ph or 220 V, 60 Hz, 3 ph |
Dimensions (lxwxh) | 2000 x 800 x 1700 mm |
Weight approx. | 450 kg |
* Models suitable for cores 38 to 200 mm dia. and prisms up to 700 mm, available on request
Ordering Info :
77-PV47005
MULTISAW, asphalt saw, complete with multi-slab jig. Blade not included. 400V / 50 / 3ph
Accessories :
77-PV47000 / 1
Diamond blade 650 mm dia. for asphalt
77-PV47000 / C1
Diamond blade 650 mm dia. for concrete
77-PV47000 / 2
Sacrifical PVC tube for 100 mm dia. core (consumable)
77-PV47014

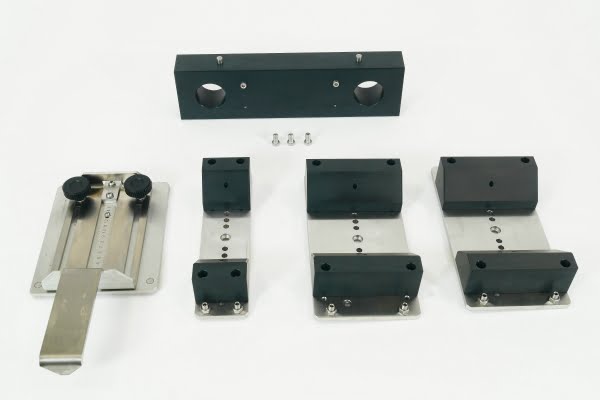

Manual core locking Jig for round cores, from 38 to 200 mm diam., to cut samples with manual feeding, from 10 to 300 mm length.
77-PV47020
Trapezoidal specimens jig to be used in Two Point Bending Test, according to EN 12697-24 and 26.
77-PV47025
77-PV47030
Jig for Texas Overlay Test according to TX-248-F. 77-PV47011 or PV47014 is required.
Price : Call For Info
Yudhistira, ST
Hp. 0811 188 6845; 08180816 0634(WA)
Email : naysite2@gmail.com;
