28/08/2017Total Pressure Cells
Brand : Slope Indicator – USA
Applications:
The total pressure cell measures the combined pressure of effective stress and pore-water pressure. Typical applications include:
- Monitoring total pressure exerted on a structure to verify design assumptions.
- Determining the magnitude, distribution, and orientation of stresses.
Operation

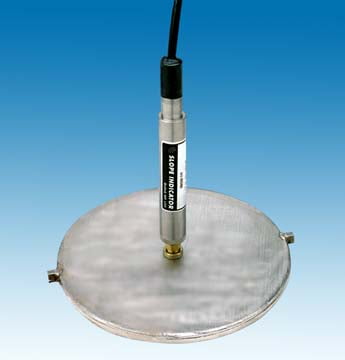

The total pressure cell is formed from two circular plates of stainless steel. The edges of the plates are welded together to form a sealed cavity, which is filled with fluid. Then a pressure transducer is attached to the cell. The cell is installed with its sensitive surface in direct contact with the soil. The total pressure acting on that surface is transmitted to the fluid inside the cell and measured by the pressure transducer.
Installation

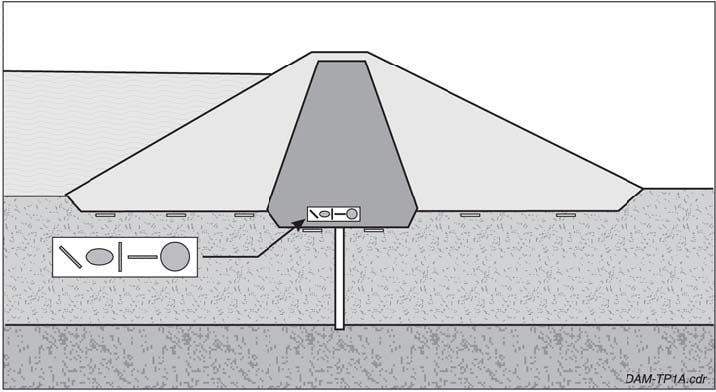

Total pressure cells are embedded in fill or mounted on structures. In fill, cells are often installed in arrays. Each cell is placed in a different orientation and covered with hand-compacted fill. On structures, the cell is typically placed into a recess so that its sensitive side is flush with the surface of the structure.
Advantages
Conformance: To minimize bridging effects, the total pressure cell has a low profile and a modulus similar to that of a typical soil. Fluid in the cell is de-aired to maximize sensitivity.
Pneumatic or Vibrating Wire: The total pressure cell is available in a pneumatic or vibrating wire version.
Manual or Automatic Readout: The vibrating wire version can be read manually with a portable indicator or automatically with a data logger. The pneumatic version must be read manually.
Sensor Specification :
Resolution: 0.025% FS.
Repeatability: ±0.5% FS.
Max. Pressure: 150% rated range.
Fluid: Ethylene glycol, de-aired to 2 ppm.
Dimensions: Cell is 230 mm diameter and 11
mm thick (9 x 0.43″). Transducer and connecting
tube is 410 mm (16″) long. Dimension from sensitive
surface to connector end of transducer is
180 mm (7″).
Weight: 3.2 kg (7 lb).
