Skid resistance and Friction tester
Description
Skid resistance and friction tester – Perangkat uji kekesatan permukaan perkerasan menggunakan alat british pendulum tester (bpt)
Brand/Supplied From : Controls – Italy
Standard : EN 13036-4, EN 1097-8, ASTM E303, EN 1338, EN 1341, EN 1342, AASTHO T278(setara dengan SNI 4427 : 2008)
Kode Barang : 48-PV0190/ASTM; 48-PV0190/EN
Main Features :
- New low friction release mechanism of the pendulum arm for beter accuracy
- Extremely light pointer, for high precision results.
- Slider lifting system integrated in the pendulum foot that guarantees reliable adjustment operations
- Stiff and stout twin column structure
- Easy and reliable height adjusting system
- Integrated additional scale for tests on PSV specimens
- Complete with calibration certificate to EN 1097-8 or ASTM E303

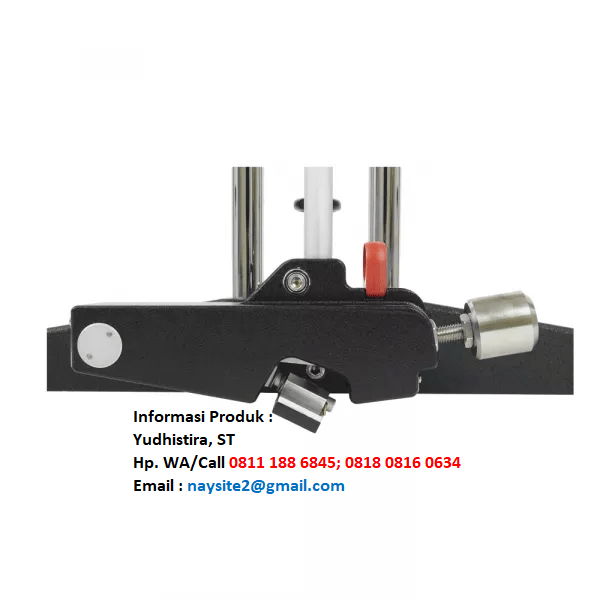

Used for the measurement of surface friction properties, the apparatus is suitable for both side and laboratory applications and for Polished Stone Value (PSV) using curved specimens from accelerated polishing test with the Acelereted Polishing machine (see link to other product below) conforming to EN 1097-8. It can also be used for testing Paving Stones (EN 1341, EN 1342) and Paving Blocks (EN 1338). The apparatus, originally developed at the Transport and Research Laboratory, U.K., consists of an adjustable pendulum arm, and a spring loaded rubber slider (see accessories) mounted on the end of the arm. During operation the pendulum is raised and then allowed to swing freely, allowing the edge of the rubber slider to skid across the surface of the road or sample. Two versions available:
- 48-PV0190/A: conforming to ASTM E303 standard and
- 48-PV0190/E: conforming to EN 1097-8 and all other mentioned EN standards
The pendulum is supplied complete with:
- Additional scale for tests on Polished Stone Value specimens
- Thermometer 0 to 220°C for surface temperature measurement
- Washing bottle, 1 l cap. for surface wetting
- Tool set with case for machine assembly
- Rule for sliding length verification
- Carrying case
- Traceable certificate of conformity to EN 1097-8 o ASTM E303
Three rubber sliders for site use are included.
Informasi Produk :
Yudhistira, ST
Hp. WA/Call 0811 188 6845; 0818 0816 0634
Email : naysite2@gmail.com
