27/04/2017Rock shear box apparatus
Category: Batuan Konstruksi
Tags: Rock Shear Box
Description
Brand : Controls – Italia
Standard : ASTM D3080 | AASHTO T236 | BS 1377:7 | CEN-ISO/TS 17892-10 | NF P94-071
Main Features :
- Shear box made in aluminium alloy
- Maximun axial and shear load capacity: 50 kN
- Reversable shear action with 48 mm stroke
- Double version available: analogic and electronic
- Data processing template available as accessory for the digital version
- 2 mould formers included in the testing configuration
General Descriptions :

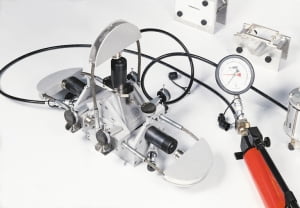

This apparatus was originally developed at Imperial college, London, by Professor E. Hoek. It is a simple and practical method of determining the strength and slope stability of rock, both in the field and in the laboratory. The apparatus consists of a shear box designed to accept samples not larger than 115×125 mm, or alternatively cores up to 102 mm dia. The shear box consists of two halves, the upper being connected to two rams for reversible shearing action and the lower connected to a ram for normal load application. The loads are recorded by Bourdon tube load gauges or by pressure transducers (in this case external datalogger is needed).
The normal loading system is complete with an adjustable low friction pressure maintainer to absorb volume changes of the specimen during the shearing action and to ensure a constant vertical stress.
It is conforming to ASTM D5607.
The normal loading system is complete with an adjustable low friction pressure maintainer to absorb volume changes of the specimen during the shearing action and to ensure a constant vertical stress.
It is conforming to ASTM D5607.
Two versions are available:

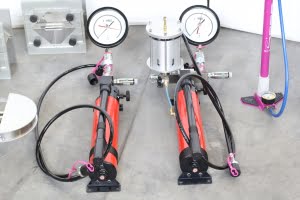

- Basic model. It is supplied complete with: 5 digital gauges 25×0.001 mm (4 vertical and 1 horizontal); 2 mould formers; 2 hand operated pumps for lateral and vertical load fitted with Bourdon gauges. The pump for vertical load is fitted with a pressure maintainer to assure uniform load during the test.
- Electronic model. It is supplied complete with; 5 potentiometric transducers with 25mm travel (4 vertical and 1 horizontal); 2 mould formers; 2 hand operated pumps for lateral and vertical load fitted with Bourdon gauges; 2 pressure transducers for the direct acquisition of the load values. The pump for vertical load is fitted with a pressure maintainer to assure uniform load during the test.
Displacement and load readings shall be acquired by suitable datalogger that has to be add as accessory. Two versions can be used to complete the testing configuration: standard model with dedicated display suitable for laboratory use or with battery operated model for on-site use. For more info please refer to Releted Products below and Accessories section.
The high alumina cement for the cementation of the sample is not included and have to be ordered separately. See Accessories
Technical Specifications :
- Max. axial and shear load capacity (for both models): 50 kN
- Manometers range (for both models): 50 kN x 1 kN
- Displacement reading (for Basic model): 5 digital gauges 25×0.001 mm
- Displacement reading (for Electronic model): 5 potentiometric transducers with 25mm travel
- Max. sample dimensions: up to dia. 102 mm (for core specimens) and 115 mm x 125 mm (for prism specimens)
- Overall dimensions (loading frame only): 460x250x600 mm
- Weight approx.: 45 kg
