29/07/2020Rock sample verification apparatus
Category: Batuan Konstruksi
Tags: 32-D0539/B D0539/B Rock sample Rock sample verification apparatus verifikasi sampel batuan
Description
Rock sample verification apparatus
Brand/Supplied From : Controls – Italia
Standard : ASTM D4543
Kode Barang : 32-D0539/B
Deskripsi Umum :

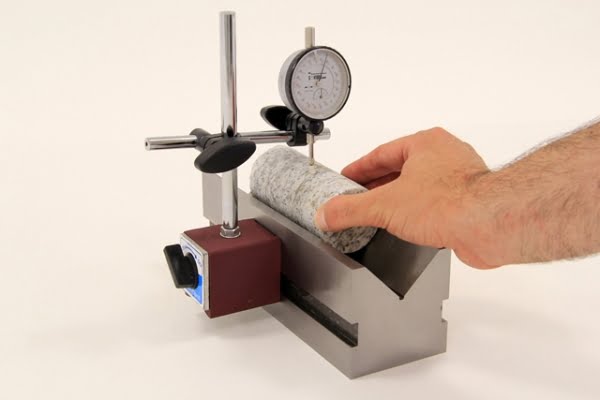

Used to verify the dimensional and shape tolerances of rock core specimens up to 75 mm dia. by 120 mm length. The straightness of the cylindrical surface can be easily verified as well as flatness and verticality of end surfaces by the same dial gauge using the magnetic holder in the desired position.
The apparatus comprises:
The apparatus comprises:
- “V” block with dimension 85 x 85 x 250 mm

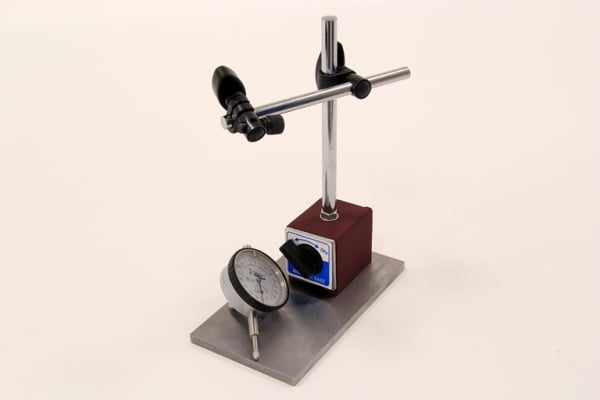

- 25.4 mm x 0.001 mm digital gauge with magnetic holder
- Additional platen 100x180x8 mm
- 6 magnets for core locking
Support surface is not included in the apparatus and has to be ordered separately as accessory.
Technical Spesifications :
- “V” block dimensions: 85x85x250 mm
- Additional platen 100x180x8 mm
- Digital gauge: 25.4 mm x0.001 mm
- Suitable for cores dia. from 21 mm to 75 mm
- Flat surface 300×300 mm available as accessory
Ordering Info :
32-D0539/B
Rock sample verification apparatus to ASTM D4543 complete with:
– “V” block with dimension 85 x 85 x 250 mm
– 5×0.001 mm dial gauge with magnetic holder
– additional platen 100x180x8 mm
– 6 magnets for core locking
Accessories :
32-D0539/B1
Flat test surface 300×300 mm made in cast iron to be used with rock sample verification apparatus model 32-D0539/B.
Price : Call For Info
