13/09/2022Perangkat Uji Kualitas Air Multiparameter – Hyqual
Category: Pengamatan Cuaca - Kualitas Air
Tags: Barometric pressure Depth (level) up to 50 m Multi-Parameter Water Quality Probes Optical dissolved oxygen ORP pH Salinity (calculated) Specific conductivity Temperature Total dissolved solids (calculated) Turbidity
Description

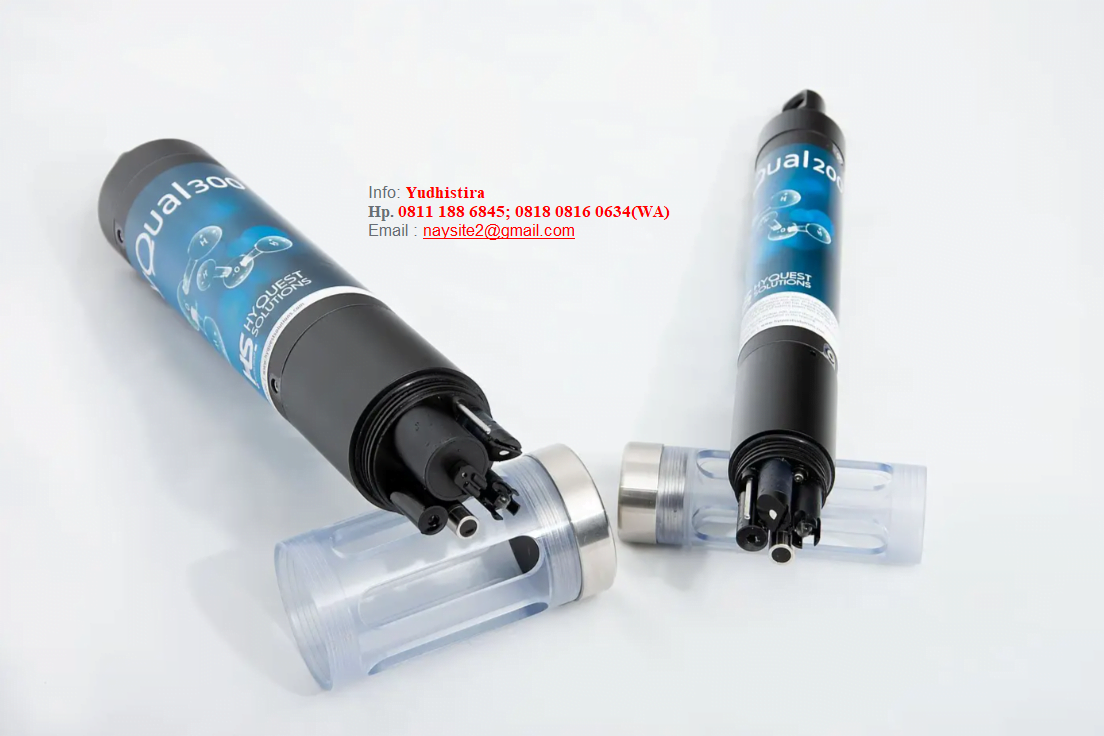

HyQual – Multi-Parameter Water Quality Probes
Merk : Hyquest Solution – Australia
Deskripsi:
HyQuest Solutions HyQual 200, HyQual 300 dan HyQual 300T Merupakan perangakat Multiparameter untuk solusi lengkap pada penyelidikan kualitas air, dengan sensoryang dapat menentukan subset atau semua parameter berikut:
- Temperature/Suhu
- Optical dissolved oxygen/Oksigen terlarut
- Specific conductivity
- pH
- ORP
- Turbidity
- Total dissolved solids (calculated)
- Salinity (calculated)
- Depth (level) up to 50 m/Kedalaman (Opsional terpasang dipasang dipabrik)
- Barometric pressure (Opsional terpasang dipasang dipabrik)
Kelebihan :
- Desain yang kokoh dan solid namun lebih ringan
- Perawatan yang rendah
- Mudah dipasang dan digunakan
- Beberapa opsi keluaran seperti RS-232 (standar) atau teknologi nirkabel Bluetooth®, SDI-12 dan MODBUS (opsional)
- bersertifikat CE
- Kompatibel dengan berbagai pencatat data HyQuest Solutions

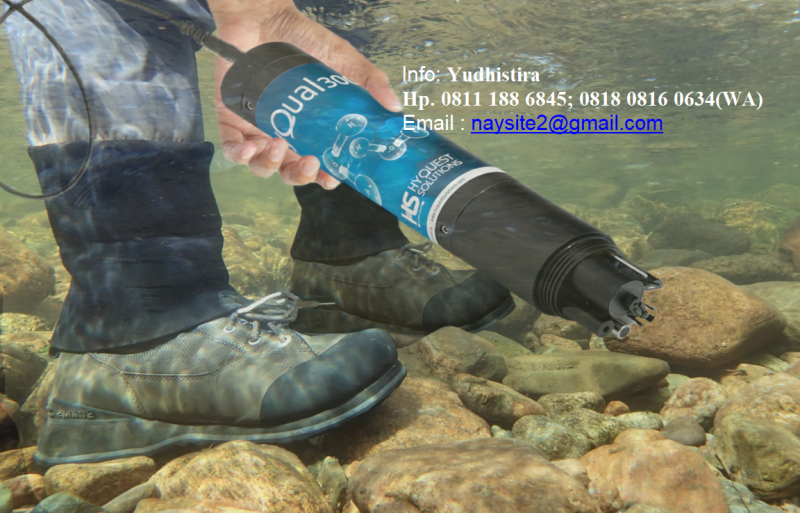

Aplikasi penggunaan pada :
- Air limbah, air tanah, air industri, air payau, air laut
- Danau, sungai, muara
- lubang bor
- Pendidikan, penelitian dan laboratorium
- Akuakultur
HyQual 200 |
HyQual 300 |
HyQual 300T |
|
Diameter | 50 mm (1.95”) | 75 mm (2.95”) | 75 mm (2.95”) |
Length | 47.8 cm (18.8”) | 47.8 cm (18.8”) | 47.8 cm (18.8”) |
Mass | 0.82 kg (1.8 lbs) | 1.63 kg (3.6 lbs) | 1.63 kg (3.6 lbs) |
Standard | Temperature sensor, dissolved oxygen sensor, specific conductivity sensor, pH sensor, ORP sensor, calculated total dissolved solids, calculated salinity, interface RS-232, weighted sensor guard, internal memory (months of data logging), maintenance kit, carrying case, non-vented underwater cable (5, 10, 20, 30, 40 and 50 m) | ||
Standard | Turbidity sensor, wiper (HyQual 300T) | ||
Options | Depth (level) sensor, barometric pressure, vented capacity, data cable for display devices (not for field use), Bluetooth® wireless technology lithium battery pack, calibration solutions, copper anti-fouling kit, USB adapter (connect DB9 to USB), integrated SDI-12 and MODBUS output, SDI-12 adapter cable, MODBUS adapter cable, Android™ display | ||
Options | External rechargeable battery for unattended registration/stand-alone capacity (HyQual 300 / 300T) | ||
Material | Resistant materials like stainless steel 303 and 316, polyacetal (Delrin), PVC, Teflon, ABS, titanium, Viton, neoprene, silicone, glass | ||
Power Supply and Consumption |
|
||
Output Options (Interfaces) | Standard: RS-232 or Optional: Bluetooth® wireless technology, SDI-12 and MODBUS | ||
Certifications | CE, RoHS (WEEE pending) |
Technical Specifications (Parameters)
Parameter (units) |
Range |
Resolution |
Laboratory Accuracy |
Field Accuracy |
Temperature (°C) | -5 to 50 | 0.01 | 0.1 | 0.1 |
pH | 0 to 14 | 0.01 | 0.1 | 0.2 |
ORP (mV) | -999 to 999 | 1 | 20 | 20 |
Specific Conductivity (uS/cm) |
0 to 200000 | four digits; maximum of one decimal |
1 % of reading +/-1 | 1 % of reading +/-1 |
Dissolved Oxygen (% Sat) | 0 to 200 200 to 500 |
0.1 – |
0.2 2 |
0.3 3 |
Dissolved Oxygen (mg/l) | 0 to 50 | 0.1 | 2 | 3 |
Turbidity (FNU, NTU) | 0 to 1000 1000 to 4000 |
four digits; maximum of two decimal |
0.3 or 2 % of reading 4 % of reading |
0.5 or 3 % of reading 5 % of reading |
Depth (m) | 0 to 25 | 0.01 | 0.05 | 0.05 |
Barometric Pressure (mbar) | 400 to 900 | 0.1 | 1.5 | 1.5 |
Total Dissolved Solids (g/l) | 0 to 65 | 0.01 | 5 % of reading | 5 % of reading |
Salinity (PSS) | 0 to 70 | 0.01 | 0.1 | 0.2 |
Info: Yudhistira, ST
Hp. 0811 188 6845; 0818 0816 0634(WA)
Email : naysite2@gmail.com
