Multipurpose Data Logger

GEODATALOG 8  is a multipurpose data logger which works directly connected to a PC. Data are automatically transferred to the PC in real time for live monitoring of the tests progress.

GEODATALOG 8 records and monitors in real time the measurements requested for soil mechanics testing, as: consolidation, shear, triaxial, permability and many others.

It is compatible with strain gauge load cells, pressure transducers, linear LDT transducers, LVDT conditioned transducers, potentiometric displacement transducers.

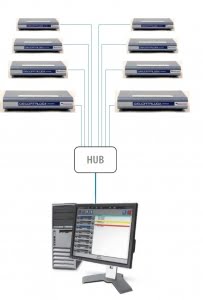

GEODATALOG 8 is conceived with a modular and flexible concept: up to 8 instruments can form a network and then create a modular system with up to 64 independent channels.

The data acquisition unit is supplied complete with general purpose  DATACOMM 2 PC software for fully comprehensive data management of both GEDOTALOG 8 and HYDROMATIC.

DATACOMM 2 software combines  the active channels into customizable groups by the operator. Data acquisition for each group is an independent task which can be started/stopped automatically with specific acquisition and logging mode.

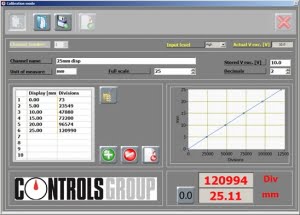

Software allows remote calibration of the connected sensors up to 10 points with polynomial fitting curve up to eight degree.

ASCII  format data export is available for combination with our geotechnical Geo-Analysis-Templates suitable for post-processing and printout of test certificates according to the most important international Standards.

• Requires connected PC
• Number of channels: 8
• Network mode: Up to 8 units
• Sampling rate: Up to 500  readings/second per channels
• Real resolution:131,000 points
• Communication port: LAN / Ethernet
• Excitation (V_EXC): from 1 V to 10 V for each couple of channels (up to 4)
• Datalogger input: 0-10 V; 0-20 mA
• Software:   DATACOMM 2 (included)
• Dimensions  approx lxdxh [mm]:290x195x61
• Weight approx [kg]: 1.6 kg
• Power supply: 110-220V,50-60 Hz, 1ph

Accessories :

Cables (mandatory)
82-P9008/ELT
Kit of four cables for connect  load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type  displacement transducers to DATALOG 8 and GEODATALOG 8

82-P9008/ELT1
One cable for connect  load cells, pressure transducers, strain gauges, LDT / LVDT / potentiometric type  displacement transducers to DATALOG 8 and GEODATALOG 8

Lan Hub
26-WF4645
LAN hub with 8 ports for Wykeham Ferrance devices

Extension Cable
30-WF6042
Transducer extension cable, 6 m
30-WF6044
Transducer extension cable, 12 m

Data processing: Geo Analysis Templates
Templates for different tests and Standards have been developed specifically for processing test data recorded by the DATACOMM 2 software.  The templates are MS Excel® based programs with easy-to-use functions for importing data files, calculating results,  producing test reports that conforms to the relevant international Standards

Test		Standard	Ordering information
Consolidation	Incremental loading	BS 1377:5	30-WF6016/T1
		ASTM D2435	30-WF6016/T8
	Swelling	ASTM D4546	30-WF6016/T8A
	CRS	ASTM D4186	30-WF6016/T6
	Hydraulic consolidation	BS 1377:6	30-WF6016/T12
	SWCC -Hydraulic consolidation	–	30-WF6016/T13
Shear	Direct/residual	BS 1377:7	30-WF6016/T2
		ASTM D3080	30-WF6016/T9
	Ring	BS 1377:7	30-WF6016/T3
		ASTM D6467	30-WF6016/T16
Triaxial	Effective stress	BS 1377:8	30-WF6016/T4
		ASTM D4767 / D7181	30-WF6016/T11
	Total stress	BS 1377:7	30-WF6016/T5
		ASTM D2850	30-WF6016/T10
Other tests	Permeability	BS 1377:6	30-WF6016/T14
	CBR	BS 1377:4	30-WF6016/T7
		ASTM D1883	30-WF6016/T17
	Unconfined	ASTM D2166	30-WF6016/T15
