Mesin Uji untuk pengujian Marshall, CBR, dan UCS 34-V1172
Description
Model : 34-V1072; 34-V1172
Brand/Supplied From : Controls – Italy
Standards : ASTM D1559; ASTM D5581; AASHTO T245; EN 12697-12; EN 12697-23; EN 12697-34; ASTM D6927; AASHTO T283 (Setara dengan SNI 6753 : 2015); ASTM D6931
Description
CONTROLS range includes a series of small and compact compression machines that can be used for several tests:

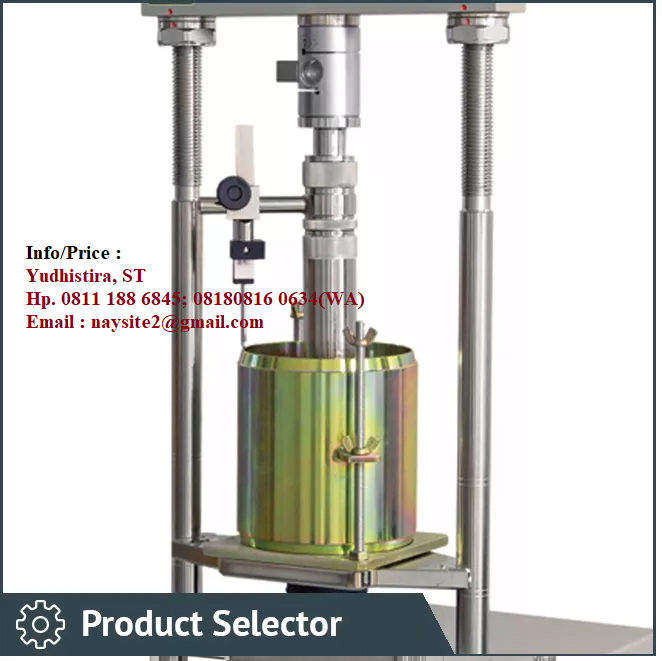

- CBR tests on soils;
- Marshall tests on asphalt;
- Indirect Tensile strength and IDEAL-CT tests on asphalt;
- uniaxial and unconfined tests on soils and rocks;
- compression tests on low stregth concrete, cement and groundcement samples;
- flexure tests on beams, mortar, tiles and any other compression or flexure test performed under displacement and/or load closed loop control within machine capacity.
Each machine can be selected depending on type of test and material:
- MULTISPEED machines are generally used for CBR, Marshall and displacement control tests (see basic and advanced MULTISPEED testing machines);
- UNIFRAME machines are generally used when load rate control is also required (see compact andlarge UNIFRAME also for Complete description).
See the table below to select your preferred machine depending on the test typically performed:
| LOAD TESTER | PERFORMABLE TESTS | CORRESPONDANT STANDARDS |
| 34-V01072; 34-V01172 |
CBR | EN 13286-47, ASTM D1883 |
| Marshall | EN 12697-34; ASTM D1559, D5581 | |
| Indirect Tensile / IDEAL-CT (V1172 only) | EN 12697-23; ASTM D8225; AASHTO T283 | |
| Semi-Circulare Bend | ASTM D8044; AASHTO TP124 | |
| Leutner Shearing frame | EN 12697-48 | |

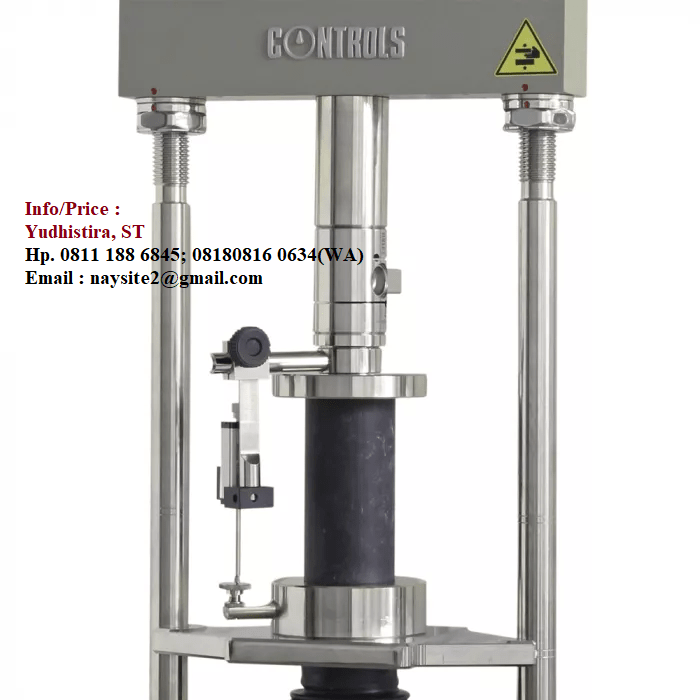

| Unconfined compression | ASTM D2166; BS 1337 | |
| Quick triaxial | ASTM D2850; BS 1337 | |
| Punching test on clay block for flooring | UNI 9730-3 | |
| Indirect tensile splitting | EN 12697-12, 23; CNR 134 | |
| 70-T1082; 70-T1182; 70-T1192 |
CBR | EN 13286-47, ASTM D1883 |
| Marshall | EN 12697-34; ASTM D1559, D5581 | |
| Indirect Tensile / IDEAL-CT | EN 12697-23; ASTM D8225; AASHTO T283 | |
| Unconfined compression | ASTM D2166; BS 1337 | |
| Flexural strenght | ASTM D1635 | |
| Quick triaxial | ASTM D2850; BS 1337 | |
| Uniaxial compression | ASTM D1633 | |
| Moduls of rupture of natural building stones | ASTM C99, C880 | |
| Punching test on clay block for flooring | UNI 9730-3 | |
| Flexural streght on concrete beams,concrete and clay tiles* (*70-T0108/W AND 70-T0109/W only) | EN 12390-5, 491, 538; ASTM C78, C293; BS 1881: 118; NF P18-407; UNI 6133; UNE 83-305 | |
| Flexural streght on mortar prisms | EN 196; ASTM C348 | |
| Compression on low strenght mortar mixes | ASTM C109 | |
| Indirect tensile splitting | EN 12697-12 e 23; CNR 134 |
Ordering Info :
34-V1072 MULTISPEED compression testing machine with digital control panel, motorized ram, two-column structure and adjustable crossbeam. 220-240V/50-60Hz/1Ph
34-V1172 MULTISPEED automatic compression testing machine with digital control and readout unit, motorized ram, two-column structure and adjustable crossbeam. 220-240V/50-60Hz/1Ph
70-T1082 UNIFRAME automatic compression testing machine with two-column structure and adjustable crossbeam – Loading capacity: 50 kN – Clearance between columns: 270 mm – 230V/50-60HZ/1Ph
70-T1182 UNIFRAME automatic compression testing machine with two-column structure and adjustable crossbeam – Loading capacity: 50 kN – Clearance between columns: 380 mm – 230V/50-60HZ/1Ph
70-T1192 UNIFRAME automatic compression testing machine with two-column structure and adjustable crossbeam – Loading capacity: 100 kN – Clearance between columns: 456 mm. 230V/50-60HZ/1Ph
