30/06/2020Mesin Pemadat sampel Uji CBR Otomatis dengan standard ASTM/AASHTO
Pemadat CBR otomatis dengan standard ASTM – AASHTO
Brand/Supplied From : Controls – Italia
Standard : ASTM D1883 | ASTM D698 | ASTM D558 | ASTM D1557 | AASHTO T99 | AASHTO T180 | AASHTO T193
Kode Barang : 33 – T3612
Main Features :
- Automatic programmable compactor to Standards ASTM and AASHTO
- Graphic display showing test progress in real time

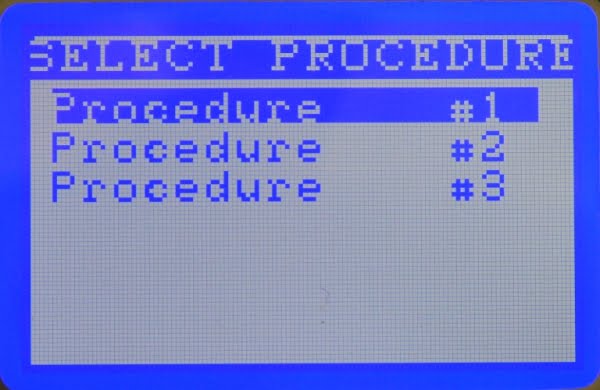

- Possibility to program up to 3 user defined compaction cycles and sequences
- Rammer with both head and weights included
- Unique rammer lifting device to guarantee correct and longlife drop height
- All safety features as protection guards and emergency button included as standard
- Lateral trasparent panel ensures free view on the compaction evolution
- Double doors for free access to wide test area
- Noise reduction cabinet is available (see accessories)
General Descriptions :

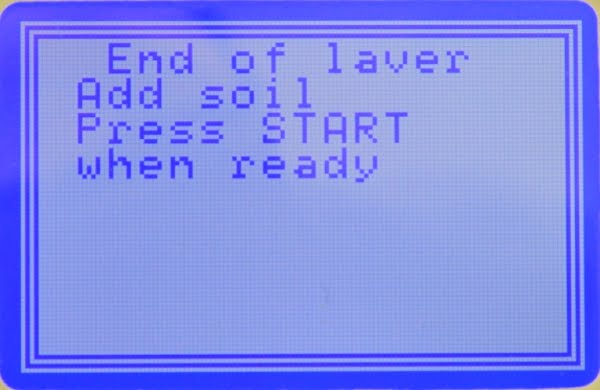

The automatic compactor provides a fully automatic and uniform compaction of specified effort, thus ensuring repeatable test results and eliminating any operator fatigue during the tests. Conforming to ASTM and AASHTO Standards, this microprocessor-controlled soil compaction tester is designed for 4″ and 6″ moulds. The end of each layer compaction is indicated by a visual and acoustic signal.
The machine is supplied complete with all relevant accessories as: 50.8 mm circular face for 4″ diameter specimen and inerchangeable sector face (triangular face) for 6″ diameter specimens, and a rammer weights (2495/4535 g) that are easily interchangeable according to the reference standard.

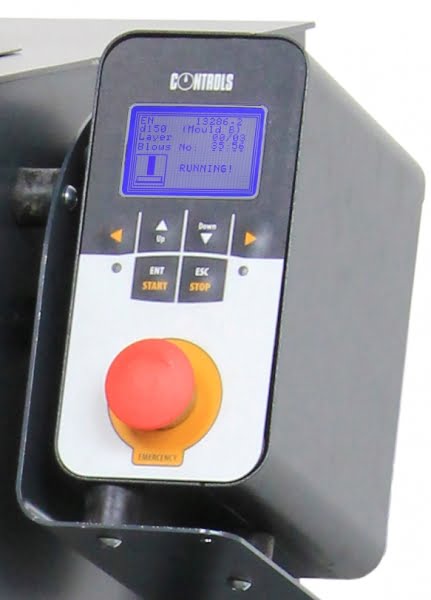

The wide control display and panel are connected with a shock absorber system and can be tilted according to user comfort.
The software gives the possibility to program customized sequences allowing the user to set the rotation angle from 5° to 90° with 5° steps between two subsequent blows, granting a precise and uniform blows distribution.
The rotating base has screw clamping system for the moulds locking.

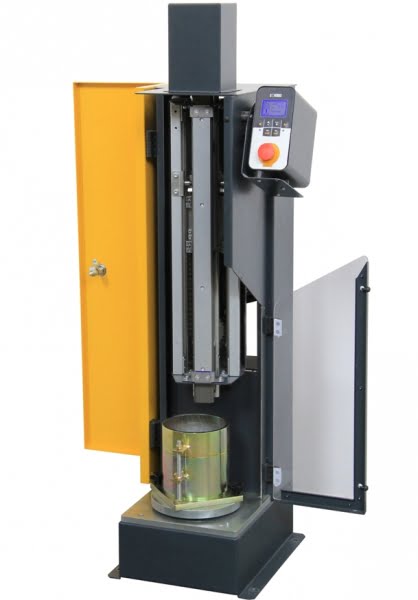

Two doors, one blind frontal and one transparent lateral, ensure comfortable access to a wide test area and gives free view during test running.
The soil automatic compactor can be supplied with noise reduction cabinet (see accessories).
This is a CVI-Tech product: best value drives the innovation.
Technical Specifications :
Models | 33-T3612 33-T3613 33-T3614 |
Mould/specimen dia. | 4” and 6” |
Rammer face dia. | 50.8 mm. |
Rammer weight (interchangeable conforming to Standards, see table below) |
2.495/4.535 kg |
Rammer drop (adjustable conforming to Standards) |
305 and 457 mm |
Blow rate | 25 blows/min, approx. |
CE protection | Included |
Power rating | 650 W approx. |
Overall dimensions (wxdxh) | 457x455x1390 mm |
Weight approx.: | 130 kg |
Ordering Info :
33-T3612
ASTM/AASHTO fully Automatic Programmable, Proctor/CBR automatic compactor for 4″ and 6″ specimens. Rammer kit included. Safety doors system and see-through window included. 230 V, 50 Hz, 1 ph.
Accessories :
Noise reduction cabinet
33-T3000/CB
Noise reduction cabinet for Proctor-CBR compactor 33-T3500 and 33-T3600 series featuring a fast and easy external installation of the control panel.
Price : Call For Info
Yudhistira, ST
Hp. 0811 188 6845; 08180816 0634(WA)
