Description
Strain Gauges untuk monitoring struktur
Standard : BS 1881:206
Kode Barang : 58-C0230/10D ; 58-C0230/30D
Description :

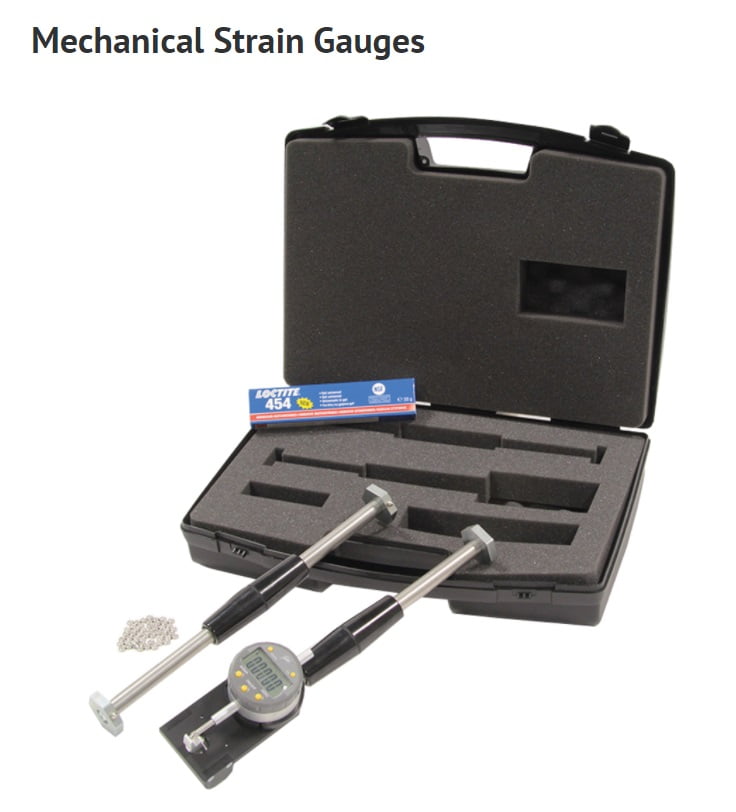

This apparatus used for determining the length changes was originally designed for use on concrete structures, but can also be conveniently used for any other type of structure including steel. The test set includes the extensometer with digital gauge resolution 0.001 mm, standard bar, calibration bar, 50 datum discs, adhesive compound for datum discs and carrying case.
Two models available: 100 and 300 measuring base.
- Carrying case dimensions: 300x400x110 mm
- Weight approx.: 2.1 kg
Main Features :
- Digital gauge 0.001 mm resolution
- Serial output for PC connection (with 82-D1261/LINK)
Ordering Info:
58-C0230/10D
Device for the measurement of length variation with digital dial gauge. Measuring base 100 mm. Measuring range 5 mm. Resolution 0.001 mm. Comprehends digital dial gauge with output for PC connection (special cable required). Conforming to BS 1881:206
58-C0230/30D
Device for the measurement of length variation with digital dial gauge. Measuring base 300 mm. Measuring range 5 mm. Resolution 0.001 mm. Comprehends digital dial gauge with output for PC connection (special cable required). Conforming to BS 1881:206
Accessories :
58-C0230/1 Datum discs. (pack of 50)
58-C0230/2 Spare adhesive tube 20g
82-D1261/LINK Serial cable for PC connection
