11/07/2017Le Chatelier moulds and water bath
Le Chatelier Mould and Waterbath
Standard : EN 196-3
Brand/Supplied From : Controls – Italy
Introduction :
Used for determining the expansion of cement. The mould consists of a spring tensioned split cylinder 30 mm internal diameter, 30 mm high with two indicator stems which measure 165 mm from the points of thje centre line of the cylinder and O ring. Two or three moulds are required for each test. To perform the test, a water bath is also required. See accessories.
We propose three packages:
62-L0025 Le Chatelier mould
Single unit. Individually checked, supplied complete with certificate of conformity and identified by a serial number.
- Weight approx.: 30 g

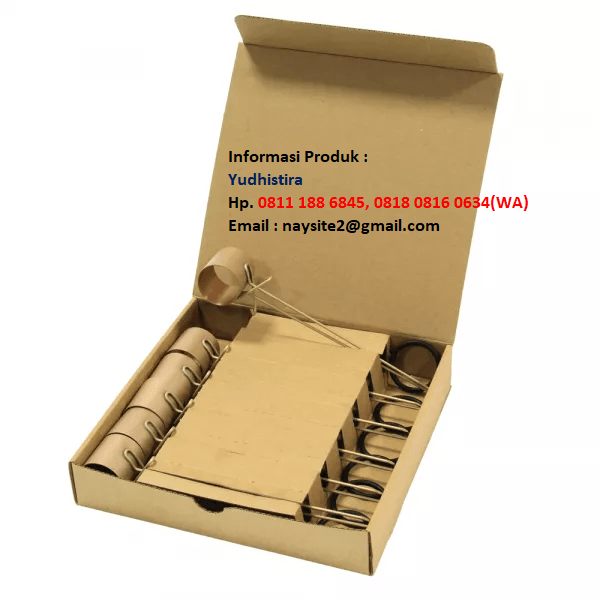

62-L0025/C Le Chatelier mould. Pack of 6 units
Same as 62-L0025.
- Weight approx.: 150 g

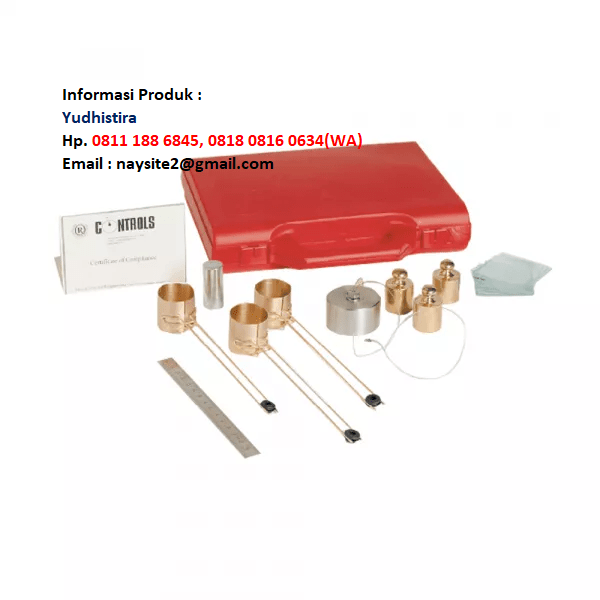

62-L0025/B Le Chatelier soundness kit
The kit includes all accessories to perform the test and to verify the conformity of the moulds.
Consisting of:
- No 3 62-L0025 Le Chatelier moulds
- No 6 62-L0025/2 Glass plates, 50 mm sq.
- No 3 62-L0025/3 100 g weights

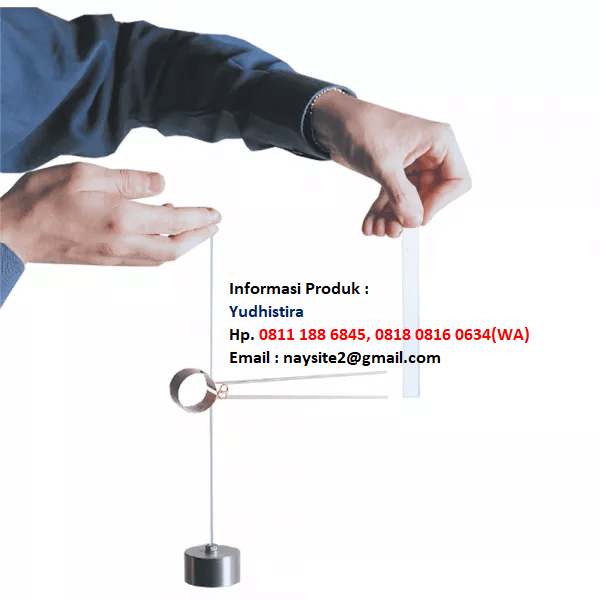

- No 1 62-L0025/4 Extensibility of mould apparatus
- No 1 62-L0025/5 Tamping rod 17 mm dia x 70 g weight
- No 1 62-L0025/6 Rule
- Weight approx.: 1 kg
Note: each one of the above parts can be purchased individually.

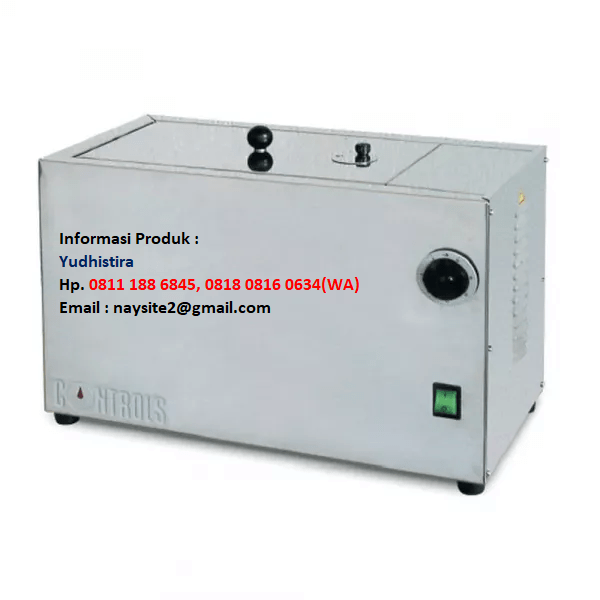

62-L0025/F Le Chatelier Water Bath
This water bath has a stainless steel internal chamber housed in an insulated stainless steel exterior case and is capable of heating water to boiling point in 30 minutes. It comes complete with a rack for twelve 62-L0025 moulds.
Specifications :
- Outside imensions: 465 x 275 x 200 mm (w x d x h)
- Weight: 10.5 kg (approx.)
- Power: 1500 W, 220-240 V, 50-60 Hz, 1 ph.
