26/08/2017Gyratory compactors for cement and concrete
Workability of no-slump concrete
Brand : Controls – Italia
Model : 54-C0252/C
Standard : NT Build 427, (Scandinavian NORDTEST method)
Main Features :
- Ideal for mix design of No slump concrete
- Conforming to NT Build 427 (Scandinavian NORDTEST method)
General Descriptions :
This method, very popular in Scandinavia, is used for mix design and quality control mainly in concrete products plants, where low workable and zero slump concrete is used (for such products as hollow-core slabs, tubes and paving blocks).
The method is used for: mix design simulating selected production processes specimen preparation for strength test (fresh and cured) research of mix related phenomena (workability, curing time, admixtures etc.).

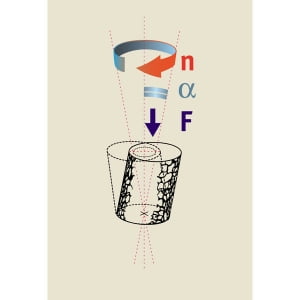

The compaction of the specimen is achieved by the simultaneous action of a low static compression , and of the shearing action resulting of the motion of the centerline of the test piece, which generates a conical surface of revolution, while the end of the test piece remain approximately perpendicular to the axis of the conical surface.
The machine is pneumatically operated.
The machines are supplied complete with one 100 mm dia. mould, accessories to perform the test and WIN-ICT software for the machine control, data acquisition and compaction curve processing and Excel Macro for gyratory compaction test complete of data processing: PC not included.
Technical Specifications :
Models | 54-C0252/C |
Specimen size, mm | 100 dia. x 90-130 high |
Gyratory angle (calibrated by 40 mrad) |
2° 17” fixed |
Number of cycles | Adjustable 2 to 512 |
Rotation speed | Adjustable 30 to 120 Cycles/min |
Vertical pressure (kPa) | Adjustable 60 to 320 |
Working air pressure | 8 bar |
Recommended air supply | 10 bar with 5µm filter |
Vertical pressure gauge | Range 0-10 bar |
Shear force measurement | No |
Dimensions mm approx. | 350x480x930 |
Weight approx. | 55 kg |
Price : Call For Info
Yudhistira
Hp. 0811 188 6845
Email : naysite2@gmail.com
