31/03/2017Pemadat Aspal pada metode superpave – Gyratory compactor GYROCOMP 78-PV2522
Rp1,234.00 Rp234.00

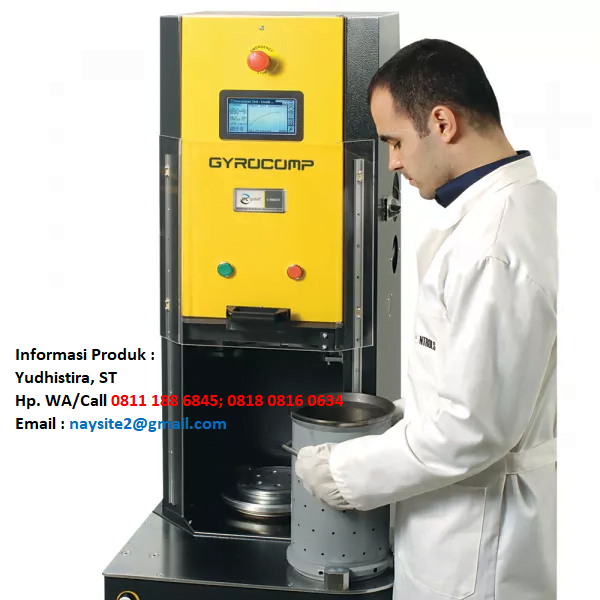

Gyratory compactor GYROCOMP 78-PV2522
Brand : IPC/ControlsGroup – Italia
Kode Barang : 78-PV2522 (AASHTO T312 and ASTM D6925), 78-PV2522/E (EN 12697-31 Annex B)
Standard : EN 12697-10, EN 12697-31, AASHTO T312, SHRP M-002, ASTM D6925
ASTM D6925 : 1.1 This standard concerns the compaction of cylindrical specimens of hot mix asphalt (HMA) using the Superpave Gyratory Compactor (SGC).
AASHTO T312 : Preparing and Determining the Density of Hot-Mix Asphalt (HMA) Specimens by means of the Superpave Gyratory Compactor
EN 12697-10 : This document describes three test methods for characterizing the compactability of a bituminous mix, by the relation between its density or void content and the compaction energy applied to it, using an impact (Marshall) compactor, gyratory compactor, or a vibratory compactor
Features :

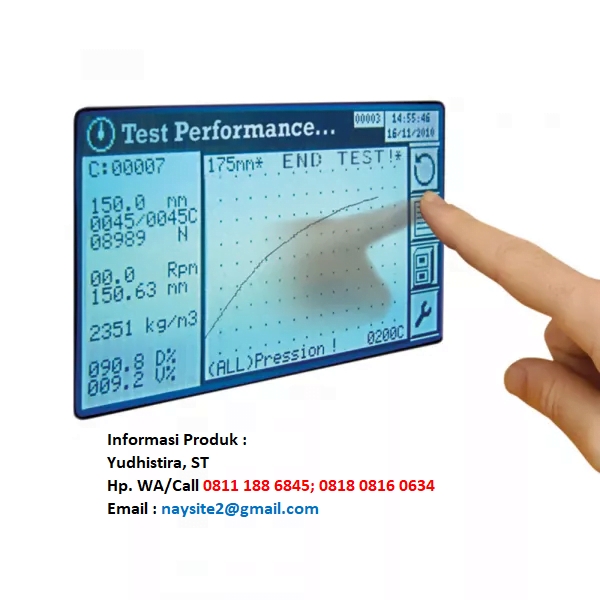

- Touchscreen display, with possibility to modify, save and recall a large range of testing procedure for fast test performance
- Vertical force by pneumatic actuator (compressed air required)
- High productivity, designed for continuous and heavy use
- High rigidity thus lightweight due to the propriety orbital system
- Compact and lightweight, also ideal for mobile laboratories
- Very reliable and accurate
- Certified to EN and AASHTO
- Approved as Superpave™ Gyratory Compactor in U.S.A.
- Sliding transparent door
- Full safety and ergonomic design
- Integrated electromechanical extruder option
- Large range of accessories available
Highlights:
Gyratory Compactors enable engineers to reproduce real-world compaction conditions during road paving operations, allowing them to ascertain the compaction qualities of an asphalt mixture.
Light and portable, GYROCOMP represents the ideal solution for Quality Control (QC) and can even be easily installed in mobile laboratories, representing the ideal solution for Quality Control (QC).
Specifications :
- Compacted specimen size: 150 and 100 mm dia.
- Sample height: 80 to 200 mm (150 mm), 50 to 125 mm (100 mm)
- Consolidation pressure: 80 to 800 kPa (150 mm); 160 to 1400 kPa (100 mm)
- Internal angle of gyration: Adjustable from 0.70 to 1.40°.
- Preset to 1.16° internal angle (78-PV2522)
- Preset to 0.82° internal angle (78-PV2522/E)
- Speed of gyration: adjustable from 20 to 60 rpm
- Number of gyrations: adjustable up to 999
- Test programmable either by number of gyrations or specimen height
- Communication with PC: Ethernet for PC connection, USB for data storage on USB stick
- Power rating: 1700 W
- Dimensions (including extruder bench, W x D x H): 502 x 753 x 1940 mm
- Dimensions (W x D x H): 469 x 615 x 1130 mm
- Weight approx.: 100 kg (without extruder) 150 kg (with extruder)
Ordering Info :

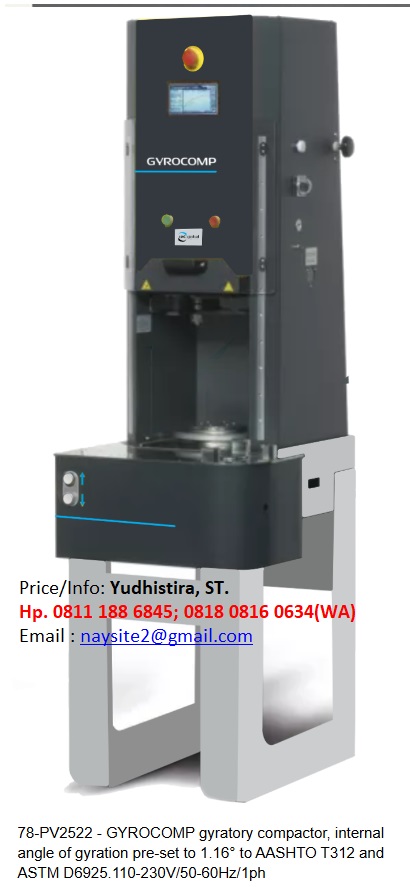

78-PV2522 GYROCOMP gyratory compactor, internal angle of gyration pre-set to 1.16° to AASHTO T312 and ASTM D6925.110-230V/50-60Hz/1ph
78-PV2522/E GYROCOMP gyratory compactor, internal angle of gyration pre-set to 0.82°to EN 12697-31 Annex B. 230-110V/50-60Hz/1ph
Accessories :
Cylinder moulds and distance plates
78-PV0250/2 Cylinder mould 150 mm dia., special alloy steel hardened to 53-55 HRC, internally grinded. Complete with top and bottom plates.
78-PV0250/5 Cylinder mould 100 mm dia., special alloy steel hardened to 53-55 HRC, internally grinded. Complete with top and bottom plates.

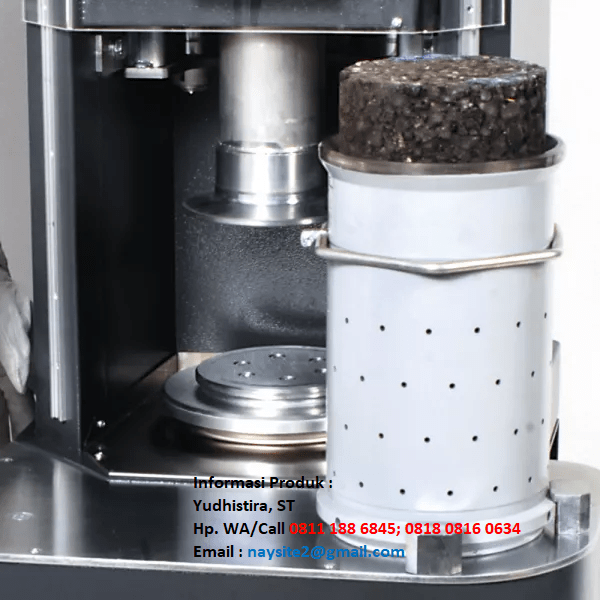

78-PV0250/10 Cylinder mould 150 mm dia., special alloy steel hardened to 53-55 HRC, internally grinded, with holes for cold mix compaction. Complete with top and bottom plates
78-PV0250/8 Cylinder mould 100 mm dia., special alloy steel hardened to 53-55 HRC, internally grinded, with holes for cold mix compaction. Complete with top and bottom plates
78-PV0250/3 Distance plate, 150 mm dia., 50 mm high, for preparing short samples
78-PV0250/6 Distance plate, 100 mm dia., 38 mm high, for preparing short samples
78-PV0250/4 Accessories to compact 100 mm dia. specimens including 100 mm height calibration device
Integrated work top with extruder
78-PV2520/15 Integrated work top with electromechanical specimen extruder. 230 V, 50-60 Hz, 1 ph
78-PV2520/15Z Integrated work top with electromechanical specimen extruder. 110 V, 60 Hz, 1 ph
Kategori : Alat uji Aspal
Price/Info: Yudhistira, ST.
Hp. 0811 188 6845; 0818 0816 0634(WA)
Email : naysite2@gmail.com
Model Terdahulu : 75-B0013/A; 75-B0014/A
