Dynamic Cone Penetrometer
Uji kekuatan atau daya dukung (CBR) di lapangan secara cepat dengan menggunakan alat penetrometer konus dinamis (Dynamic Cone Penetrometer, DCP).
Brand : Controls – Italia
Standard : ASTM D6951
ASTM D6951 : 1.1 This test method covers the measurement of the penetration rate of the Dynamic Cone Penetrometer with an 8-kg hammer (8-kg DCP) through undisturbed soil and/or compacted materials.
General Descriptions :
This apparatus in used for the rapid in-situ measurement of the structural properties of existing road pavements constructed with unbound materials. Continuous measurements can be made down to a depth of approximately 850 mm or, when extension shafts and rods are used (available as accessories), to a recommended maximum depth of 2 m. Where pavements layers have different strengths the boundaries can be identified and the thickness of the layers determined. Correlations have been established in earlier work (Van Vuuren, Klein and Van Herden, Smith and Pratt) between the Dynamic Cone Penetrometer (DCP) and California Bearing Ratio (CBR) so that results can be interpreted and compared with CBR specifications.

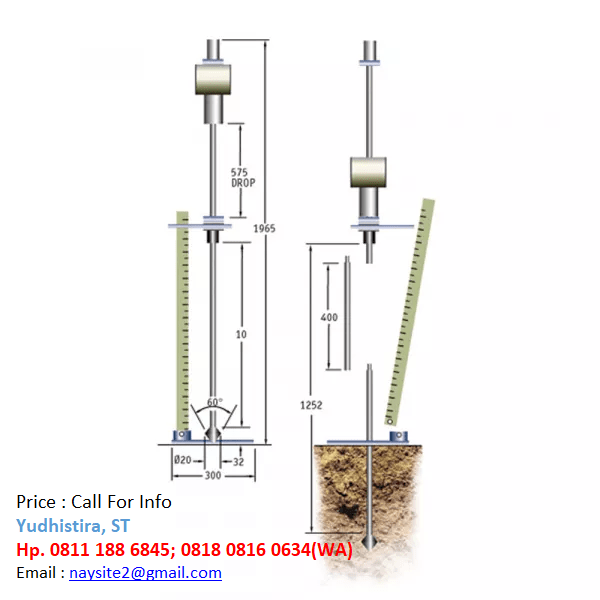

Technical Specifications :
- 8 kg dropping weight with 575 mm drop
- 2 penetration tip 60° cone, 20 mm dia.
- drive rod 1 meter long
- vertical scale
- wrench and carrying case. All contained in a carrying case.
- Case dimensions: 1200x350x200 mm approx.
- Weight approx.: 30 kg
Ordering Information :
16-T0012/D Dynamic cone penetrometer complete with:
– 8 kg dropping weight with 575 mm drop
– 2 penetration tips 60° cone, 20 mm dia.
– drive rod 1 meter long
16-T0012/A TRL Dynamic cone penetrometer (Discontinue)
Price : Call For Info
Yudhistira, ST
Hp. 0811 188 6845; 0818 0816 0634(WA)
Email : naysite2@gmail.com
