Dynamic Penetrometer Motor operated 20-30 kg Drop Weight

Model : 16-T0013/F

Brand/Supplied from : CONTROLS-Italy

Standard : DIN 4094

Highlight :

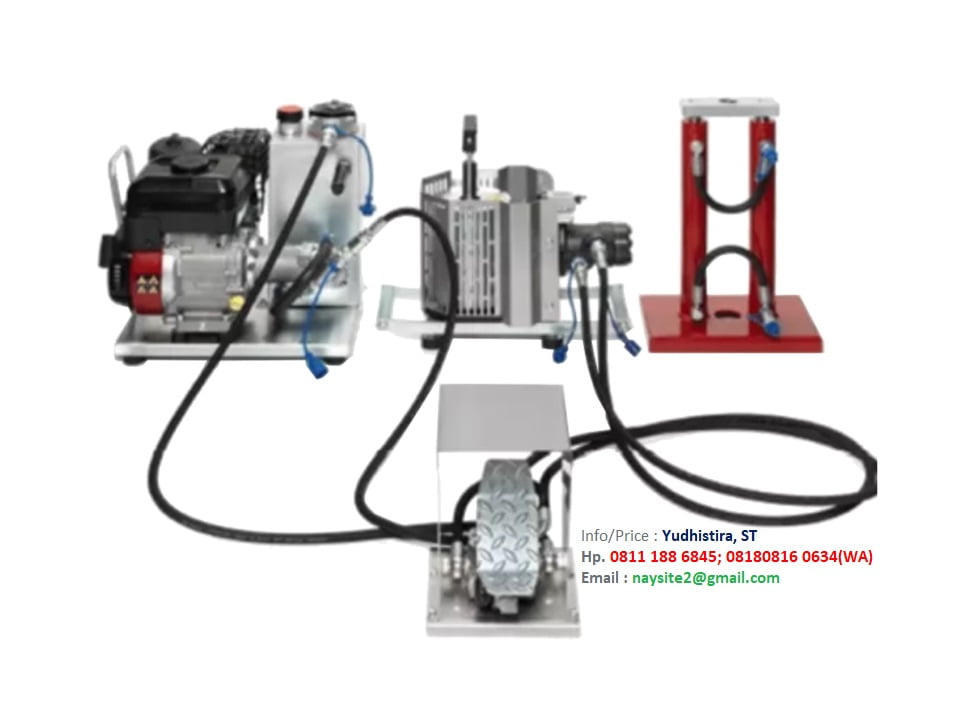

The dynamic motorized penetrometer allows exclusively continuous dynamic penetrometric tests to be performed. For the dynamic tests, the penetrometer is equipped with a 30 kg (66 pound) hammer with a 200 mm (7.87 inch) stroke, operated by a hydraulic motor. It is driven by a motor-pump  with petrol engine. A hydraulic extractor is used to extract rods, lining tubes and samplers. The penetrometer is controlled via a pedal-operated distributor. The hydraulic connections on the various components use quick connectors.

The apparatus satisfy DIN 4094 standards for medium weight test apparatus 30 kg mass x 20 cm drop height.

Features :

• Continuos dynamic penetrometric test in a portable device
• Exceptionally small means it can be used on site that are inaccessible to normal machines
• Penetrometeris controlled via a pedal-operated distributor
• Includes Hydraulic extractor is used to extract rods

Spesifications :

• Engine: 127 cc; 4hp
• Fall height: 20 cm
• Drop weight: 20 or 20 + 10 kg

Price : Call For Info
