Specific gravity – Berat Jenis 11-D0612/C

Specific gravity frame and baskets

Supplied From : Controls – Italia

Standard : BS 812:2, EN 12390-7, ASTM C127(padanan dari SNI 6872 : 2015), AASHTO T85

ASTM C127 : 1.1 This test method covers the determination of the average density of a quantity of coarse aggregate particles (not including the volume of voids between the particles), the relative density (specific gravity), and the absorption of the coarse aggregate.

SNI 6872 : 2015 : Metode uji ini mencakup penentuan kepadatan dengan berat isi tanah dan batuan dengan menggunakan air untuk mengisi sumur uji sehingga diketahui volume dari sumur uji. Penggunaan kata “batuan” pada metode uji ini menunjukkan bahwa bahan material yang dapat diujikan material berpartikel lebih besar atau sama
dengan 3 in (75 mm).

General Descriptions :

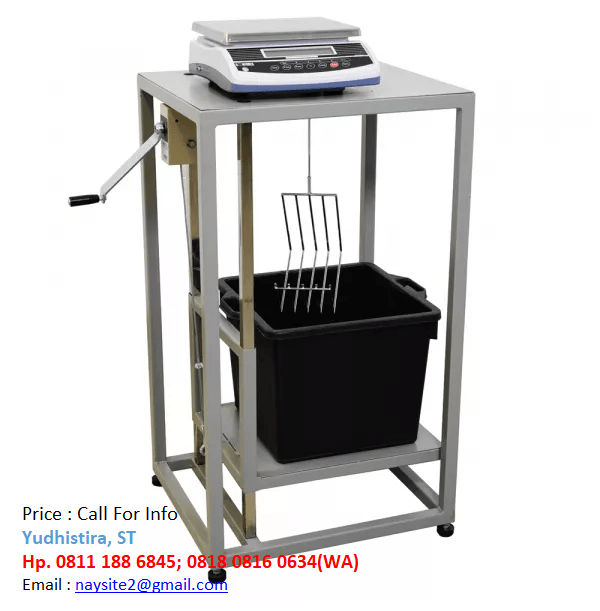

Used with a suitable electronic balance for specific gravity determination of fresh and hardened concrete and aggregates. A purpose built robust frame designed to support the electronic balance. The lower part of the frame incorporates a moving platform, which carries the water container allowing the test specimens to be weighted in both air and water. The balance is not included and has to selected conforming to the weighing range required. Any type of electronic balance fit with an underbench weighing facility can be used as, for example, all our models. See Balances, electronic. The frame has to be completed with the 11-D0612/A1 cradle, to hold concrete cubes or cylinders, or with the suitable Density basket for use with aggregates.

• Overall dimensions: 400 x 650 x 1000 mm
• Weight approx.  25.5 kg

Ordering info :

Specific gravity frame

11-D0612/C  Specific gravity frame

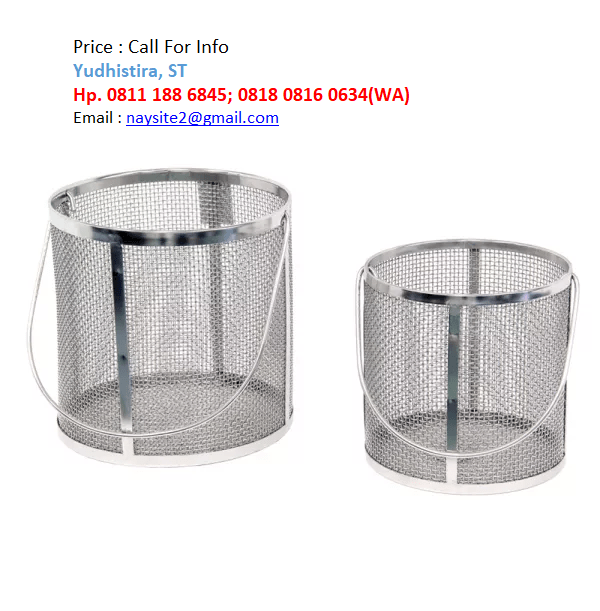

Density baskets

11-D0612   Density basket 200 mm dia. x 200 mm high, stainless steel with 3.35 mm mesh opening.

11-D0612/1   Density basket 250 mm dia. x 250 mm high, stainless steel with 3.35 mm mesh opening .

47-D0612/2   Density basket 160 mm dia. x 180 mm high, stainless steel with mesh opening lower than 3 mm, to NF P18-554.

Accessories :

11-D0612/A1  Cradle for holding specimens

11-D0611/3  Specific gravity tank 400x400x330 mm

Note: see links for related accessories for asphalts testing

Price : Call For Info
